Stinger HORIZON10 IX210E-LR1 10" Media Center with DAB+, Carplay / Android Auto, USB/HDMI, 4x Camera Input for Land Rover Defender 90 / Puma 2007-2016

Stinger HORIZON10 IX210E-LR1 10" Media Center with DAB+, Carplay / Android Auto, USB/HDMI, 4x Camera Input for Land Rover Defender 90 / Puma 2007-2016

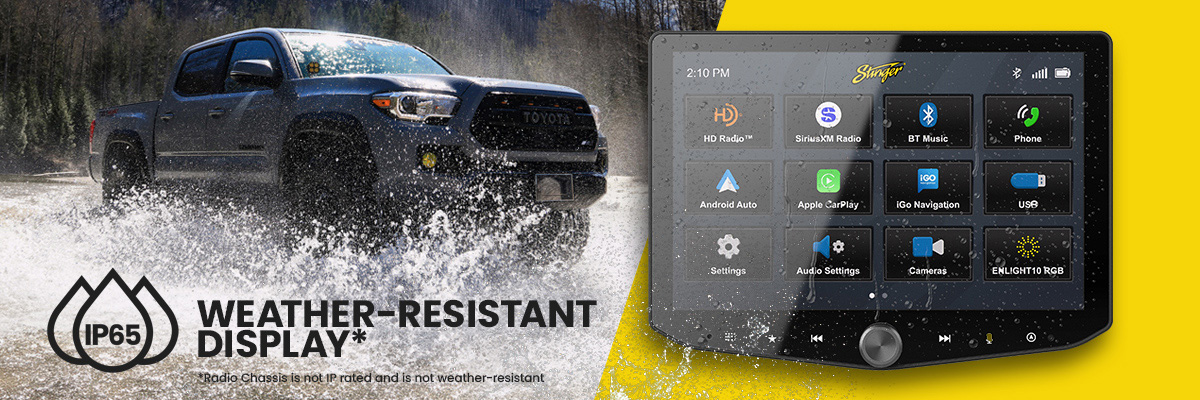

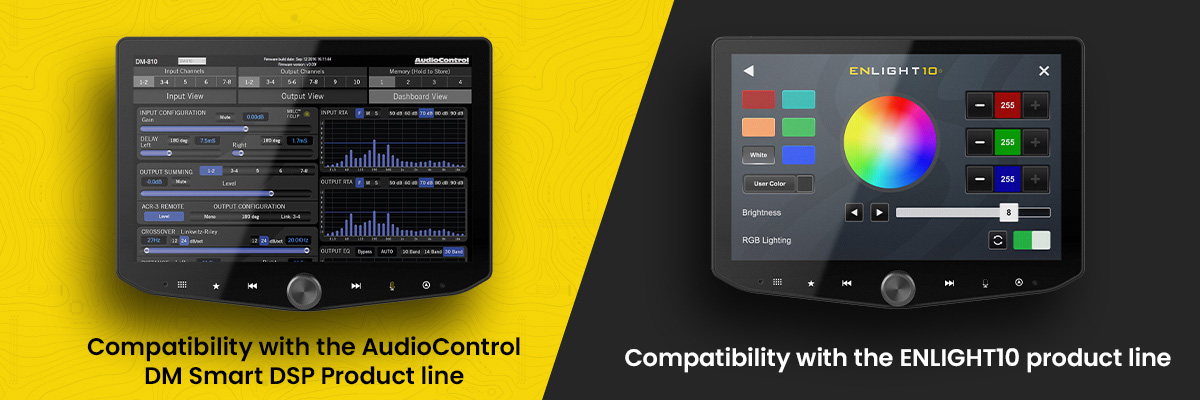

Experience the ultimate upgrade for your Defender with the HORIZON10 iX210E‑LR1 – a premium 10" infotainment system specifically designed for 2007–2016 models. Featuring both wireless and wired Apple CarPlay and Android Auto, this system offers seamless connectivity, an IP65 weatherproof display for harsh conditions, DAB+ digital radio, and state-of-the-art audio features. Fully compatible with AudioControl DSP and ENLIGHT10 lighting integration, the HORIZON10 iX210E redefines what in-vehicle entertainment and control should look like.

Upgrade your Land Rover Defender's radio with the HORIZON10 iX210E‑LR1 10-inch infotainment system and retain all OEM features and vehicle settings. This all-in-one, easy-to-install, plug-and-play package includes everything you need to integrate your audio system into your vehicle's dashboard.

Featuring a high-resolution 10-inch capacitive touchscreen and 16.7 million colors, the HORIZON10 offers a complete visual experience. It is designed to optimize screen size and infotainment features for drivers. The display and tuner module feature a modular design, increasing installation flexibility in tight spaces and, in some cases, even working when a dedicated dash kit is unavailable.

The HORIZON10 features anti-glare and anti-reflection technology for the best outdoor visibility. Personalize your display with customizable RGB lighting to match the factory lighting or create your own lighting accents.

Complete vehicle integration

• The included dash kit and mounting ensure a seamless, factory-like installation and give your vehicle's HORIZON10 display a professional, integrated appearance.
• The vehicle-specific cable harness provides a direct and secure connection between your vehicle and the HORIZON10 to ensure compatibility and optimal performance.
• The interface offers advanced control options for your infotainment system, including camera controls. 2012–2016 models also display enhanced vehicle information.

The best smartphone options

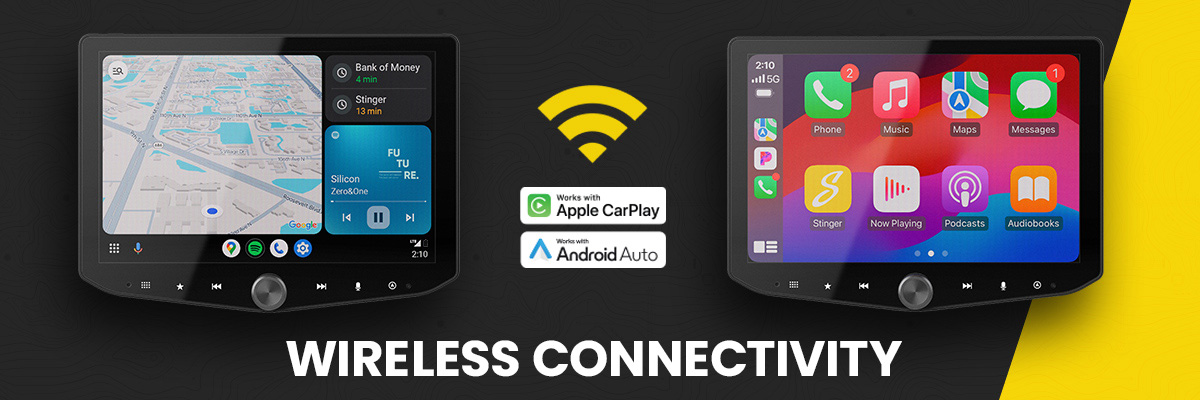

Android Auto: When you connect an Android device, Android Auto integrates the Android platform into your driving experience in a non-distracting way. You have voice control access to Google Maps, weather, music, your phone, text messages, and easy access to many of your favorite apps.

Apple CarPlay: CarPlay integrates your iPhone® into the driving experience, making iPhone content available at the driver's voice command without distraction. This means easy access to your music library, phone, messages, navigation, and many third-party music streaming apps.

All features at a glance

•

  Complete set for seamless plug & play installation

  With the help of a vehicle-specific installation kit and a custom-fit radio fascia, changing your car radio is a breeze and can be completed in a short time. Nothing stands in the way of your upgrade to a state-of-the-art infotainment system.

•

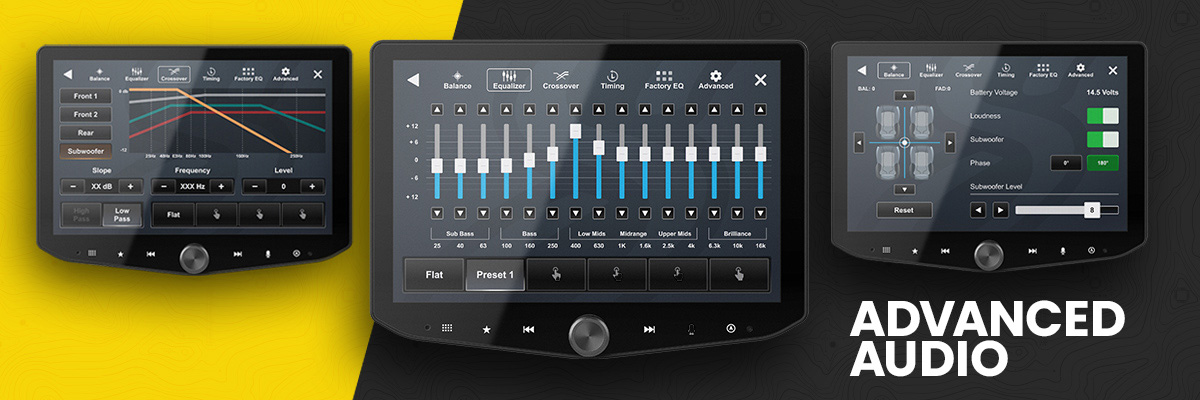

  15-band adjustable EQ

  Customize your sound to your liking. The customizable 15-band graphic EQ features four global presets and three user presets for each audio source.

•

  4 camera inputs

  Protect your valuable cargo. Includes 4 camera inputs. Add a rearview camera, 2 side cameras, and a front camera. Select your camera mode from the menu or have the cameras automatically trigger when you reverse or activate your turn signal.

•

  Modular design

  The HEIGH10 features a modular design, making it a truly universal and versatile infotainment option. The display and receiver can be mounted separately, giving you the option of installing a large screen even if space is limited behind the OEM radio you're replacing.

•

  10-inch touchscreen

  Impressive 10-inch touchscreen display. Give your Wrangler a rich visual experience with 16.7 million colors—all in high resolution (1024 x 600). Adjust the lighting and background, use pinch and zoom (not available in all apps), and anti-glare.

•

  Bluetooth hands-free system

  Answer calls and listen to music from your Bluetooth-enabled device. Avoid speeding tickets with the convenience and security of Bluetooth hands-free calling. Built-in microphone and optional external microphone included. Bluetooth 4.2 with aptX technology ensures the best sound quality.

•

  HDMI Input

  Enjoy videos and other HDMI content on the go. Long road trip? Connect external DVD players, streaming devices, and other HDMI-compatible media players. Intended for passenger use only. Drivers are prohibited by law from watching videos while driving. HDMI cable not included.

•

  GPS

  No phone data? No problem! iGO's built-in map database (microSD card sold separately) doesn't require a data connection. Whether you're high in the mountains or in the desert, you can rest assured that your route guidance is safe and accurate.

Technical data

Generally

• Model number: IX210E
• Operating voltage: 10.5VDC to 16VDC
• Mass system: Negative mass
• Maximum power consumption: 15A fused

Dimensions

• Radio module: 177.7 mm x 112.96 mm x 50 mm (W x H x D)
• Display: 247.2 mm x 180.56 mm x 36.19 mm (W x H x D)

Display

• 10.1-inch diagonal
• 16:10 aspect ratio
• Resolution: 1280 × 800
• Pixels: 1,024,000
• Active area: 216.96 mm (W) x 135.6 mm (H)
• Operating temperature: -20° to 70°C

Audio

• Load impedance: 4 Ω nominal / 2 Ω permissible
• Continuous power: 18W x 4 channels / 4 Ω, 20Hz to 20kHz, 1% THD at 14.4V
• Speaker level: 0-40 steps
• Preamp output level: 4.5Vrms typical
• Preamp 8 channels: Front 1 L/R, Front 2 L/R, Rear L/R, Subwoofer L/R
• Equalizer: 15-band (25Hz to 16kHz)
• Gain: ±6dB (0.5dB/step)
• Crossover Level: 10 levels
• Front 1 & Rear HPF: 25Hz–5kHz/bypass, Slope: 6/12/18dB, Level 0-15
• Front 2 HPF & LPF: 25Hz–5kHz/bypass, Slope: 6/12/18dB, Level 0-15
• Subwoofer Pre-Lineout: 4.5Vrms typical, max. 7Vrms without distortion
• Subwoofer LPF: 25Hz-250Hz, Gain: 0-15dB, Phase: 0/180°, Level 0-15
• Time Alignment: 0–133 steps (inches), 0–99 steps (9.9ms)
• User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat
• Source Gain: 0dB default, adjustable -10 to +10, 0.35dB/step
• Volume Settings: Main, telephone, navigation, voice and ringtone volume can be adjusted separately
• Supports internal & external Smart DSP
• AKM AK7739 audio processor, DAC Advanced 32bit

USB

• USB 2.0 (2x) – max. current 1.5A, max. storage 128GB, Class A, supports video/audio/image, charging, firmware update
• USB 3.0 (1x) – max. current 3A, max. memory 128GB, CMSC/MTP, file system FAT32/NTFS
• Supports: Apple CarPlay, Android Auto, Video/Audio/Image, Charging, Firmware Update
• Only USB-C compatible for Apple CarPlay/Android Auto

tuner

• DAB+ digital radio
• Automatic tuning, preset buttons
• RDS FM/AM tuner

Bluetooth

• Version 5.1 Dual
• 4dBm Class 2
• 2.4–2.48 GHz

Wi-Fi

• Supports IEEE 802.11 a/b/g/n/ac
• 802.11ac 1x1 Wave-2, MU-MIMO STA
• Complete 802.11n MIMO solution for 2.4GHz & 5GHz

AM tuner

• 530–1710 kHz
• Sensitivity 25 dBuv (Mono S/N: 20 dB)
• SNR: 58 dB

4 camera video inputs

• NTSC, PAL, AHD 25 & 30 MHz
• Mirror Camera Image

Accessory control

• 4x Accessory Control with own symbol, name & switching behavior

HDMI input

• Supported resolutions: 640×480p, 720×480p, 1280×720p, 1920×1080i, 1920×1080p

TOSLINK

• Output: 48 kHz variable

Audio formats

• MPEG-1 Audio Layer-3 (MP3)
• FLAC
• MPEG-2 Advanced Audio (AAC)
• MPEG-4 Audio (M4A)
• Windows Audio (WAV)
• OGG
• MP1, MP2, AAC, AMR-NB, AMR-WB, APE, PCM/ADPCM, VORBIS, OPUS, WMA, AC3/DDP, DTS

Video formats

• MPEG-4 video, H.264 (MP4)
• Microsoft AVI (AVI)
• MPG, MPEG 1/2, VOB, FLV
• MPEG-1, MPEG-2, H.263, H.264, H.265 (HEVC)
• WMV 7/8, VC-1, VP8, M-JPEG

Image formats

• JPEG (.jpg, .jpeg)
• CompuServe GIF (.gif)
• PNG (.png)
• Bitmap (.bmp)
• Background image (user): JPG / PNG, Resolution: 1280 × 800
