BlackVue CM100LTE GL LTE Module for DR970X / DR770X / DR750X Dash Cams
BlackVue CM100LTE GL LTE Module for DR970X / DR770X / DR750X Dash Cams BlackVue CM100LTE GL LTE Module for DR970X / DR770X / DR750X Dash Cams BlackVue CM100LTE GL LTE Module for DR970X / DR770X / DR750X Dash Cams BlackVue CM100LTE GL LTE Module for DR970X / DR770X / DR750X Dash Cams

BlackVue CM100LTE GL LTE Module for DR970X / DR770X / DR750X Dash Cams

€229.95
Incl. 19% VAT , excl. Shipping Cost
  • MicroUSB plug-in connectivity module
  • Offers easy 4G LTE connectivity
  • Requires a valid Nano SIM card
  • For DR970X / DR900X / DR770X & DR750X series dash cams
  • Up to 480Mbps
A21253
Delivery Time 11 - 14 Days*
Free Shipping in Germany

Versandkosten: 4,99 €

BlackVue CM100LTE GL LTE Module for DR970X / DR770X / DR750X Dash Cams

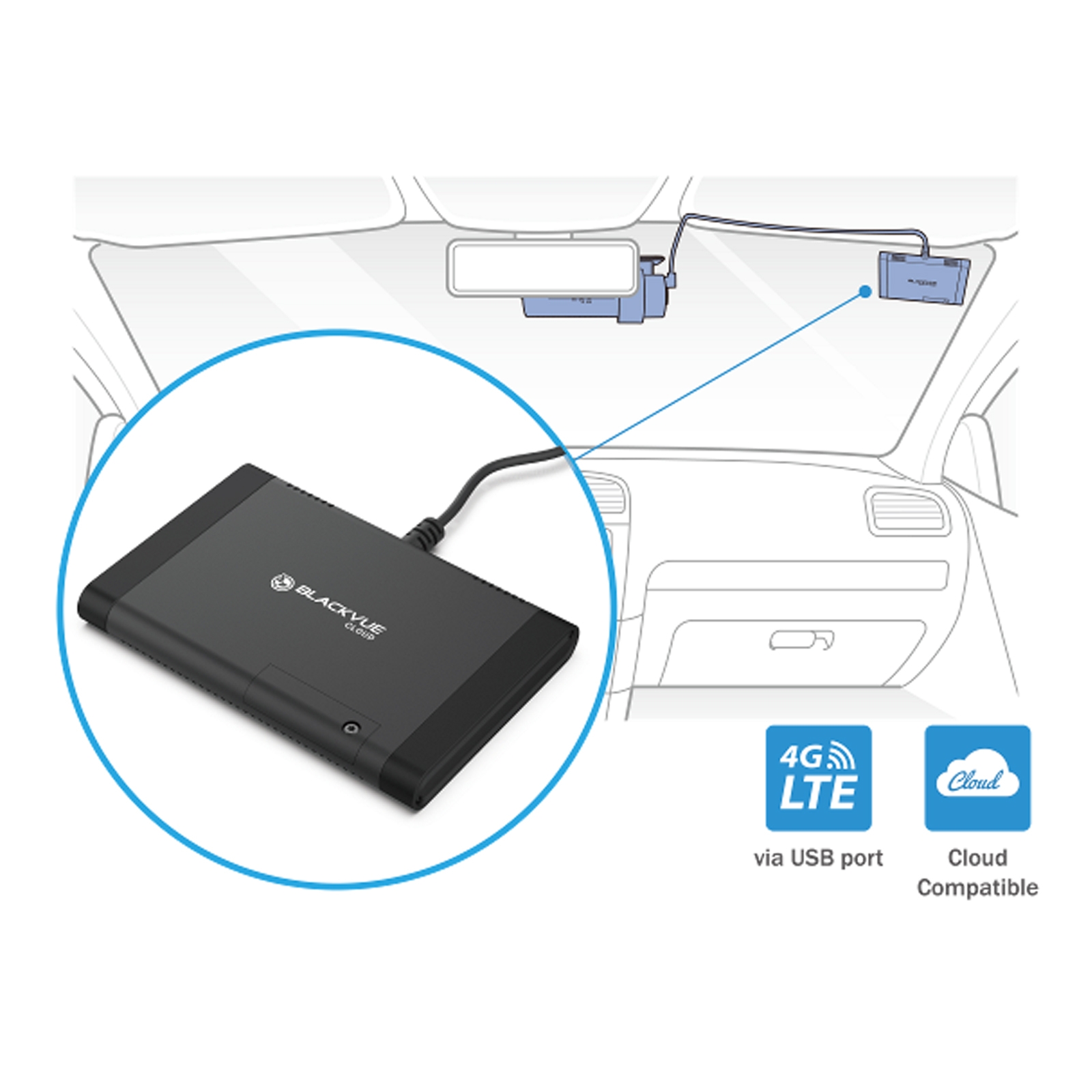

Some BlackVue dashcams allow you to connect an LTE connectivity module (CM100LTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dash cam to BlackVue Cloud and receive notifications on your phone when your parked car is hit. Plus, you can remotely see what your dash cam is seeing in real-time. Because the dash cam is powered, you don't have to worry about the CM100LTE running out of power like a self-powered router might.

Version GL: Bands: B1, B3, B7, B20 for Europe (most of the main suppliers), Africa, Middle East, Russia, Brazil, Asia. Partly for South America.

Compatible Dash Cams

  • DR970X
  • DR900X
  • DR900XPlus
  • DR770X
  • DR770X box models
  • DR750X
  • DR750XPlus

Note for interested parties or owners of the DR770X box models :
The CM100GLTE also includes GNSS (GPS+GLONASS) so you won't lose location/speed data if you swap out the standard GNSS module that comes with your dash cam.

alt text

More Information
Technical data

LTE Features:
Support up to Non-CA CAT. 4 FDD and TDD LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL)
LTE-TDD : Max 130Mbps(DL) / Max 30Mbps(UL)

SIM Type:
Support Nano SIM Card / 3.0V

Power Supply:
USB Harness Cable : 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage: 3.3V ~ 5.5V / Max. Current: 2A

Power Consumption:
Idle Mode: 20mA / Traffic Mode: 570mA @ Max. Power (23dBm)

Temperature Range:
Operation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C

Scope of delivery

Module
SIM eject tool
Cable clips
Screw driver

Dimensions 90x60x10mm
Brand BlackVue
Product Type LTE Module
Cable length 3 m
Color black
EAN 8809352138148
